TRUMPF Trumatic L3050

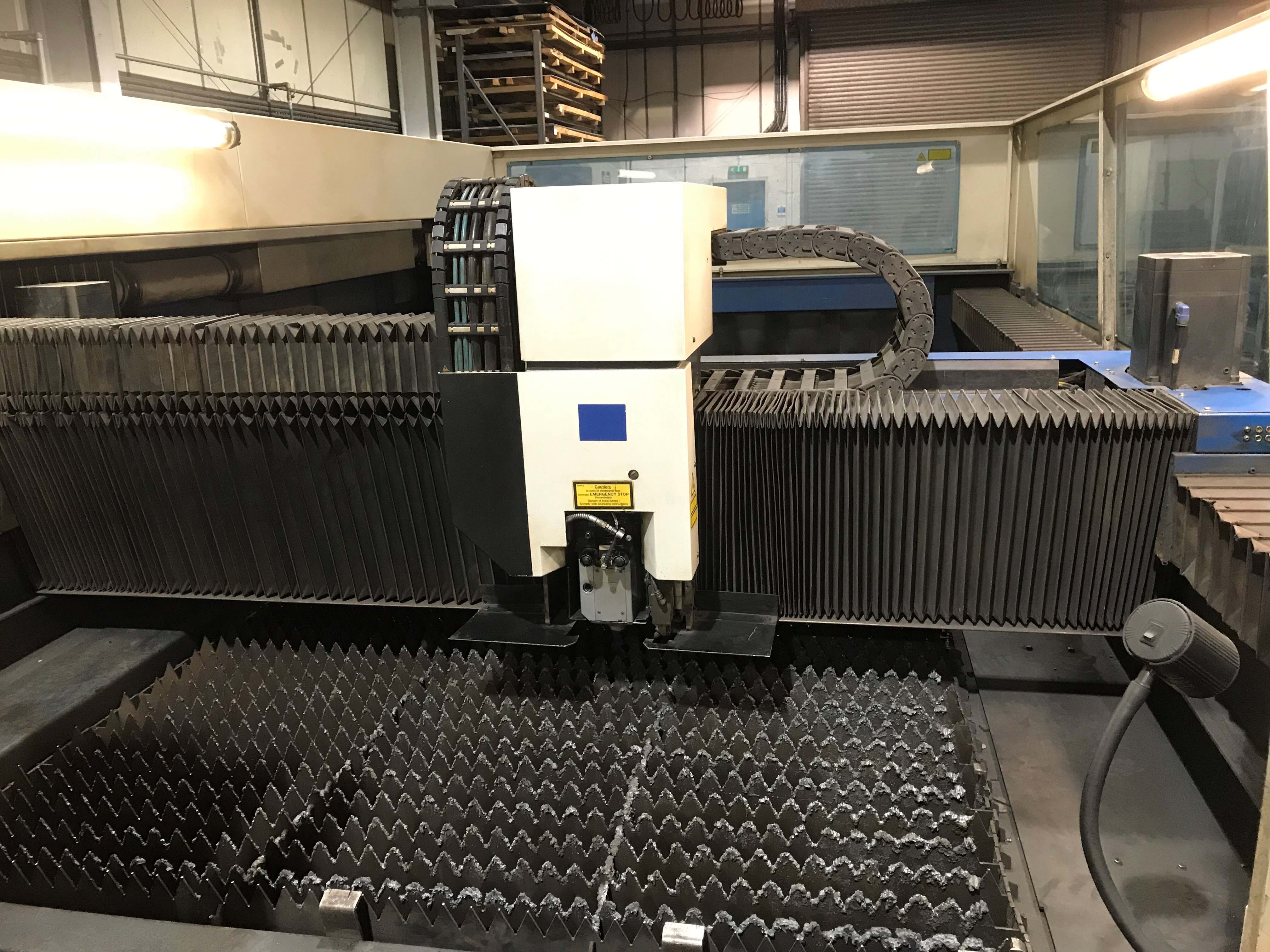

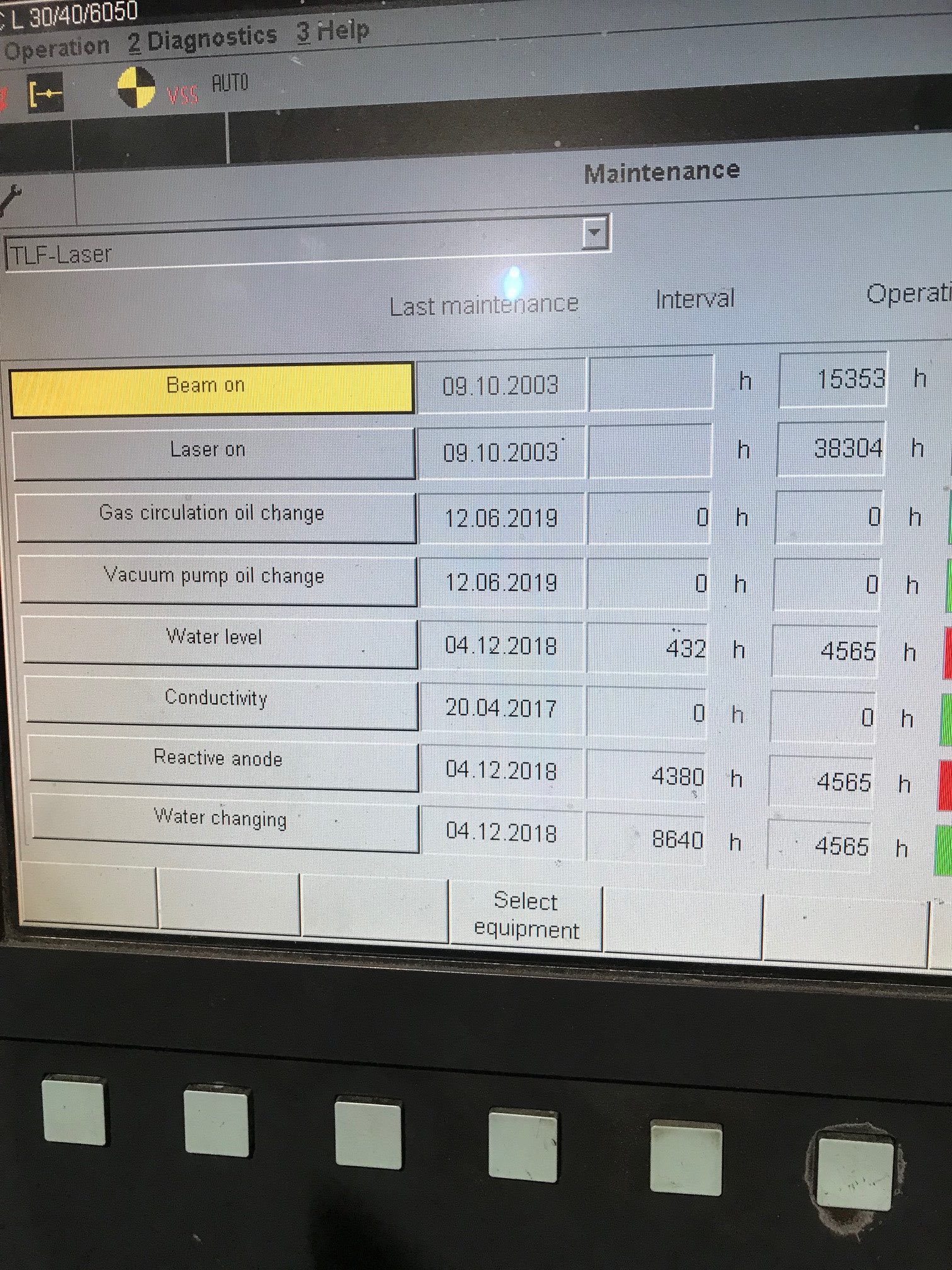

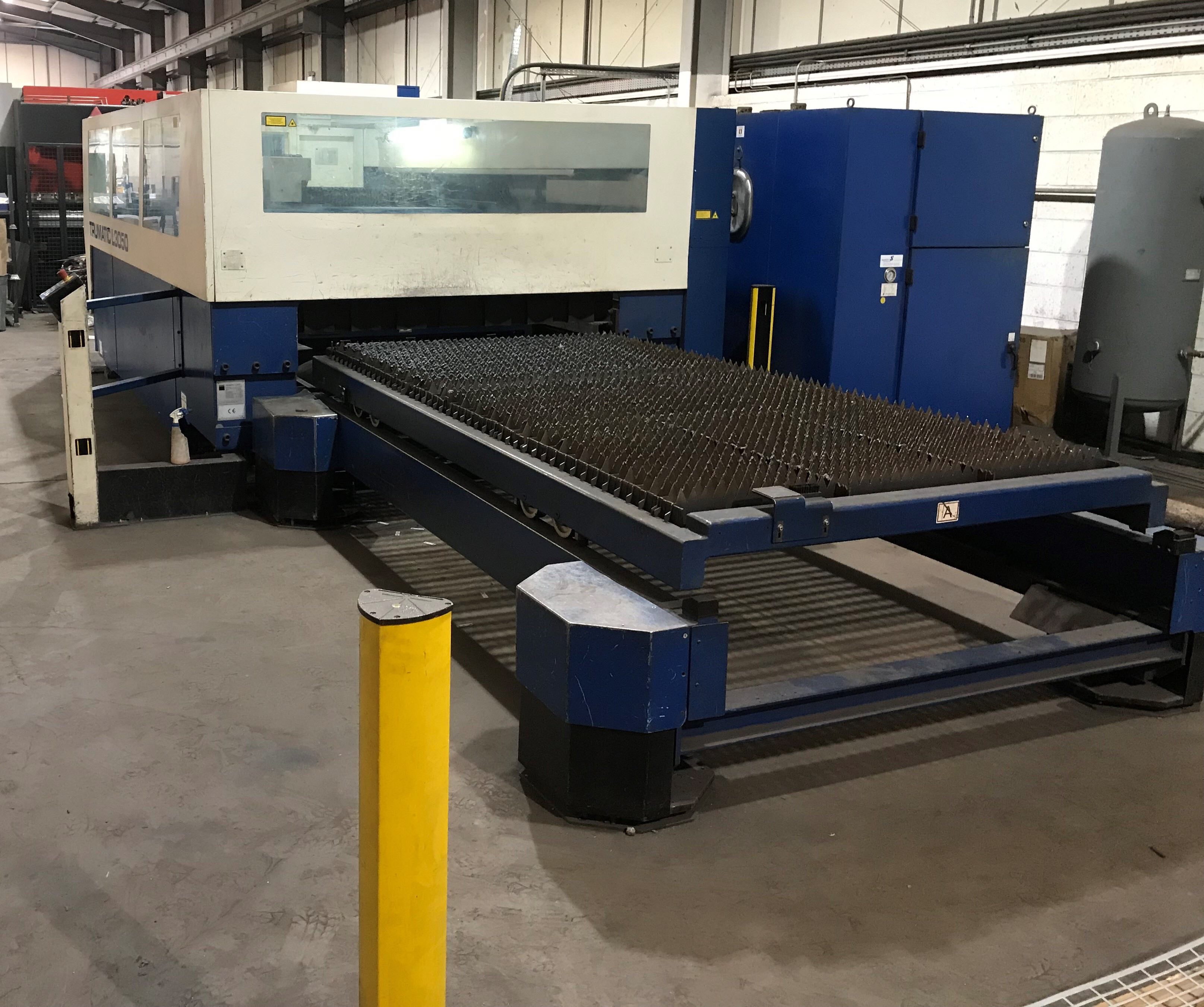

TRUMPF TRUMATIC L3050 5kW Laser cutting machine (2002): In working condition. With Loadmaster automatic loader Machine working hours: LASER ON: 38500 hours RAY ON: 15.500 hours Working area: (X x Y x Z) 3000 x 1500 x 100 mm Moviments: X direction: -16mm. - +114 mm. Y direction: -19mm. - +62 mm. Z direction: -7 mm. - +16 mm. Max. displacement area: X direction: 3130 mm. Y direction: 1580 mm. Z direction: 123 mm. Control: Siemens Sinumerik 840 DMax. melt steal.: 25 mm Max. stainless.: 20 mm Max. aluminimum.: 12 mm Max. weight of the piece: 900 kg. Axis speed: 200 m/min / 300 m/min. Accuracy: 0,01 mm. / +- 0,1 mm. / +- 0,03 mm. Laser: TLF 5000 LxWxH: 11.100 mm x 4.600 mm. x 2.400 mm Weight: 12.000 kg
